杀死玩家

我们可以通过跳到敌人身上来杀死他们，但玩家仍然不能死亡。让我们来解决这个问题。

我们希望检测到被敌人击中与压扁敌人时的不同。我们希望玩家在地板上移动时死亡，但如果他们在空中，则不会死亡。我们可以使用向量数学来区分这两种碰撞。但是，我们将使用 Area3D 节点，该节点适用于命中框。

使用 Area 节点制作攻击框

回到 player.tscn 场景，添加一个新的 Area3D 子节点。把它命名为 MobDetector（小怪检测器）。添加一个 CollisionShape3D 节点作为它的一个子节点。

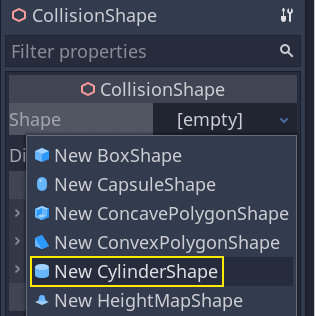

在检查器中，给它指定一个圆柱体形状。

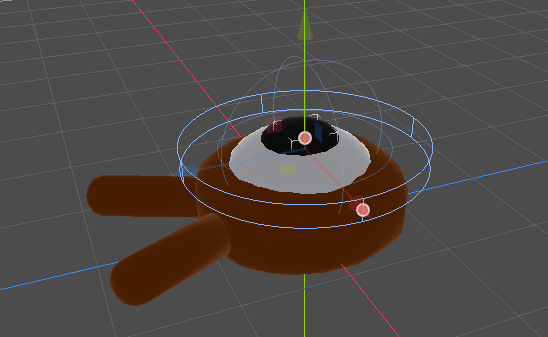

这里有一个技巧，你可以用它来使碰撞只发生在玩家在地面上或靠近地面时。你可以降低圆柱体的高度并将其向上移动到角色的顶部。这样，当玩家跳跃时，形状会太高，敌人无法与之碰撞。

你还希望圆柱体比球体更宽。这样一来，玩家在碰撞之前就会被击中，并被推到怪物的碰撞盒之上。

圆柱体越宽，玩家就越容易被杀死。

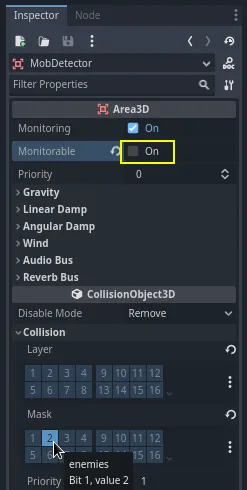

接下来，再次选择 MobDetector 节点，并在检查器中， 关闭 其 Monitorable 属性。这使得其他物理节点无法检测到这个区域。补充的 Monitoring 属性允许它检测碰撞。然后，清除 Collision -> Layer，并将掩码设置为“enemies”层。

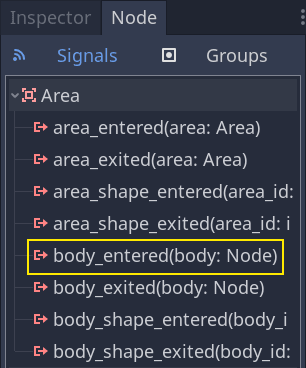

当区域检测到碰撞时，它们会发出信号。我们要将一个信号连接到 Player 节点。在节点选项卡中，双击 body_entered 信号并将其连接到 Player

当一个 CharacterBody3D 或 RigidBody3D 节点进入它时，MobDetector 将发出 body_entered 信号。由于它只遮罩了“enemies”物理层，它将只检测 Mob 节点。

从代码上看，我们要做两件事：发出一个信号，我们以后会用来结束游戏，并销毁玩家。我们可以用 die() 函数来包装这些操作，帮助我们给代码贴上描述性标签。

GDScriptC#

# Emitted when the player was hit by a mob.
# Put this at the top of the script.
signal hit


# And this function at the bottom.
func die():
    hit.emit()
    queue_free()


func _on_mob_detector_body_entered(body):
    die()

结束游戏

我们可以利用 Player 的 hit 信号来结束游戏。我们所要做的就是将它连接到 Main 节点上，在处理时停止 MobTimer。

打开 main.tscn 场景，选中 Player 节点，然后在节点面板中把 hit 信号连接到 Main 节点。

在 _on_player_hit() 函数中获取并停止计时器。

GDScriptC#

func _on_player_hit():
    $MobTimer.stop()

如果你现在试玩游戏，你死亡后就会停止刷怪，现有的怪物会离开屏幕。

还要注意的是，当玩家死亡时，游戏不再崩溃或显示错误。因为我们正在停止 MobTimer，所以它不再触发 _on_mob_timer_timeout() 函数。

另外请注意，敌人与玩家碰撞并死亡取决于 Player 和 Mob 的碰撞形状的大小和位置。你可能需要移动它们，调整它们的大小，以达到紧凑的游戏感觉。

You can pat yourself on the back: you prototyped a complete 3D game, even if it's still a bit rough.

在此基础上，我们将会添加计分、重启游戏的选项，你还会看到如何使用简单的动画让游戏变得更加活灵活现。

代码检查点

这些是 Main、Mob、Player 节点的完整脚本，仅供参考。你可以把它们和你的代码进行对比检查。

首先是 main.gd。

GDScriptC#

extends Node

@export var mob_scene: PackedScene


func _on_mob_timer_timeout():
    # Create a new instance of the Mob scene.
    var mob = mob_scene.instantiate()

    # Choose a random location on the SpawnPath.
    # We store the reference to the SpawnLocation node.
    var mob_spawn_location = get_node("SpawnPath/SpawnLocation")
    # And give it a random offset.
    mob_spawn_location.progress_ratio = randf()

    var player_position = $Player.position
    mob.initialize(mob_spawn_location.position, player_position)

    # Spawn the mob by adding it to the Main scene.
    add_child(mob)

func _on_player_hit():
    $MobTimer.stop()

然后是 mob.gd。

GDScriptC#

extends CharacterBody3D

# Minimum speed of the mob in meters per second.
@export var min_speed = 10
# Maximum speed of the mob in meters per second.
@export var max_speed = 18

# Emitted when the player jumped on the mob
signal squashed

func _physics_process(_delta):
    move_and_slide()

# This function will be called from the Main scene.
func initialize(start_position, player_position):
    # We position the mob by placing it at start_position
    # and rotate it towards player_position, so it looks at the player.
    look_at_from_position(start_position, player_position, Vector3.UP)
    # Rotate this mob randomly within range of -45 and +45 degrees,
    # so that it doesn't move directly towards the player.
    rotate_y(randf_range(-PI / 4, PI / 4))

    # We calculate a random speed (integer)
    var random_speed = randi_range(min_speed, max_speed)
    # We calculate a forward velocity that represents the speed.
    velocity = Vector3.FORWARD * random_speed
    # We then rotate the velocity vector based on the mob's Y rotation
    # in order to move in the direction the mob is looking.
    velocity = velocity.rotated(Vector3.UP, rotation.y)

func _on_visible_on_screen_notifier_3d_screen_exited():
    queue_free()

func squash():
    squashed.emit()
    queue_free() # Destroy this node

最后是最长的脚本 player.gd：

GDScriptC#

extends CharacterBody3D

signal hit

# How fast the player moves in meters per second
@export var speed = 14
# The downward acceleration while in the air, in meters per second squared.
@export var fall_acceleration = 75
# Vertical impulse applied to the character upon jumping in meters per second.
@export var jump_impulse = 20
# Vertical impulse applied to the character upon bouncing over a mob
# in meters per second.
@export var bounce_impulse = 16

var target_velocity = Vector3.ZERO


func _physics_process(delta):
    # We create a local variable to store the input direction
    var direction = Vector3.ZERO

    # We check for each move input and update the direction accordingly
    if Input.is_action_pressed("move_right"):
        direction.x = direction.x + 1
    if Input.is_action_pressed("move_left"):
        direction.x = direction.x - 1
    if Input.is_action_pressed("move_back"):
        # Notice how we are working with the vector's x and z axes.
        # In 3D, the XZ plane is the ground plane.
        direction.z = direction.z + 1
    if Input.is_action_pressed("move_forward"):
        direction.z = direction.z - 1

    # Prevent diagonal moving fast af
    if direction != Vector3.ZERO:
        direction = direction.normalized()
        $Pivot.look_at(position + direction, Vector3.UP)

    # Ground Velocity
    target_velocity.x = direction.x * speed
    target_velocity.z = direction.z * speed

    # Vertical Velocity
    if not is_on_floor(): # If in the air, fall towards the floor. Literally gravity
        target_velocity.y = target_velocity.y - (fall_acceleration * delta)

    # Jumping.
    if is_on_floor() and Input.is_action_just_pressed("jump"):
        target_velocity.y = jump_impulse

    # Iterate through all collisions that occurred this frame
    # in C this would be for(int i = 0; i < collisions.Count; i++)
    for index in range(get_slide_collision_count()):
        # We get one of the collisions with the player
        var collision = get_slide_collision(index)

        # If the collision is with ground
        if collision.get_collider() == null:
            continue

        # If the collider is with a mob
        if collision.get_collider().is_in_group("mob"):
            var mob = collision.get_collider()
            # we check that we are hitting it from above.
            if Vector3.UP.dot(collision.get_normal()) > 0.1:
                # If so, we squash it and bounce.
                mob.squash()
                target_velocity.y = bounce_impulse
                # Prevent further duplicate calls.
                break

    # Moving the Character
    velocity = target_velocity
    move_and_slide()

# And this function at the bottom.
func die():
    hit.emit()
    queue_free()

func _on_mob_detector_body_entered(body):
    die()

在下一节课中我们会添加计分和重试选项，再见。
